Periodic readouts

In this guide you will learn how to use the Periodic readouts analysis in the Leanheat® Monitor analytics tab.

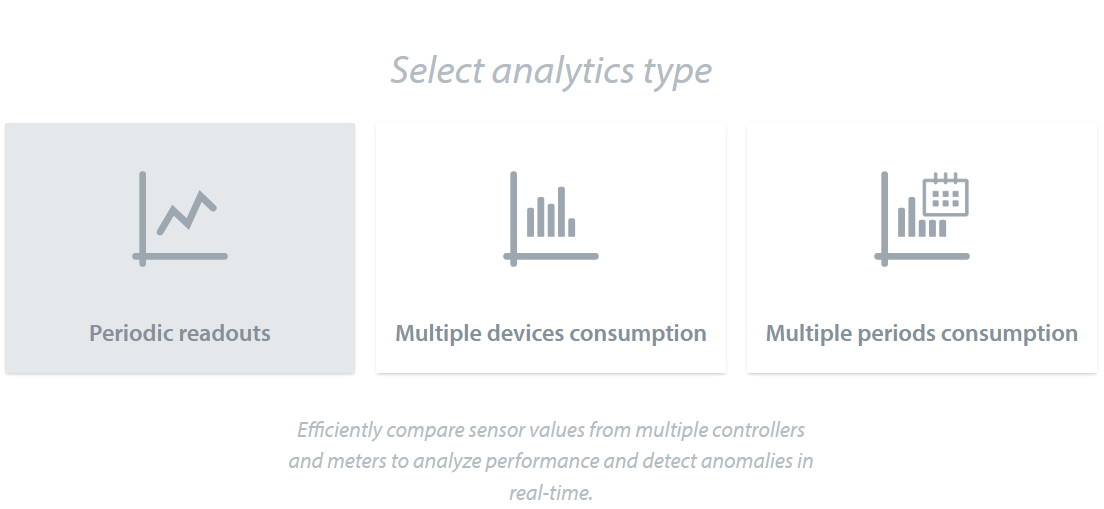

Periodic readouts lets you compare sensor values from multiple controllers and meters in a single graph, for example to analyze performance or to detect anomalies. It is one of the three analysis types in the analytics tab, next to Multiple devices consumption and Multiple periods consumption.

Setting up the comparison

1. Open the Analytics tab and select Periodic readouts.

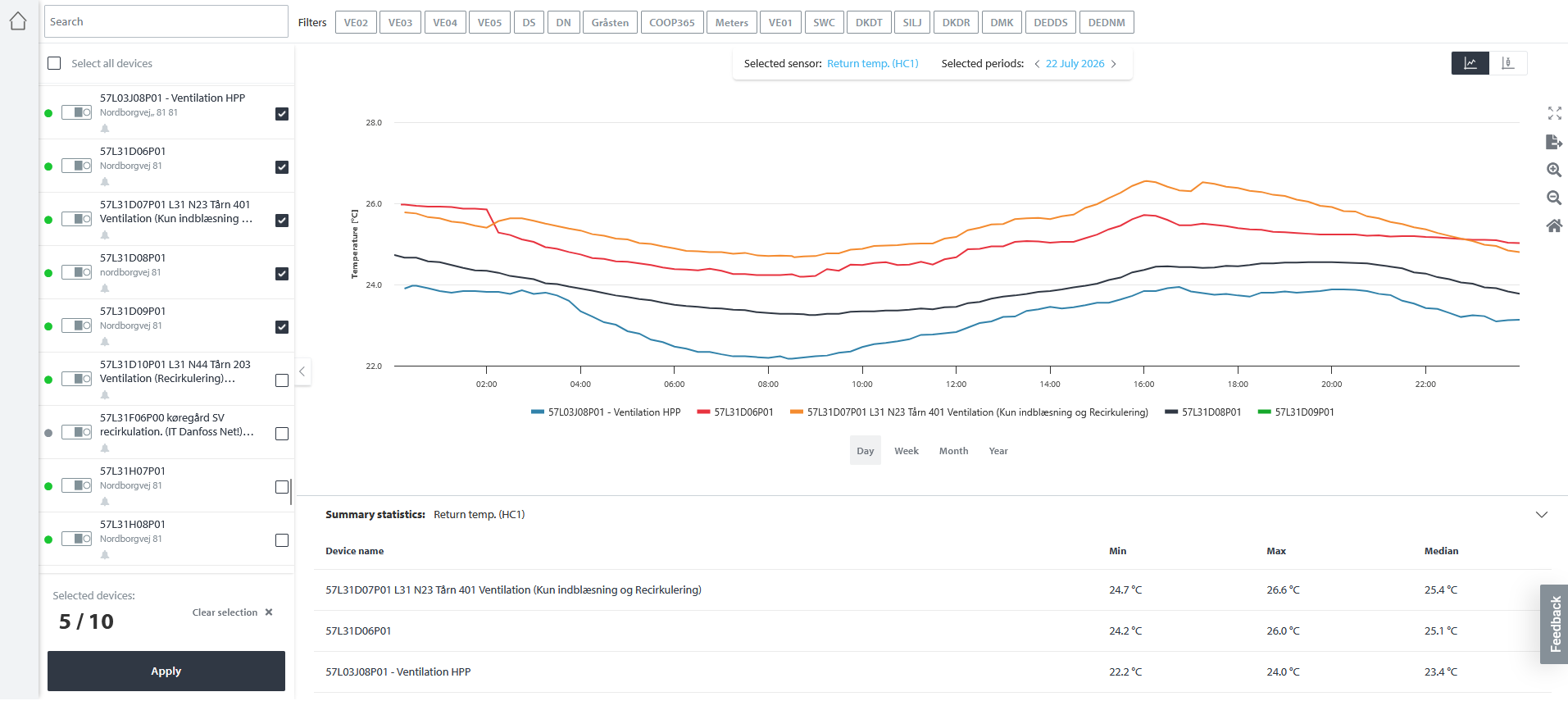

2. Select the devices to compare from the menu on the left hand side, up to 10 devices. You can use your existing device filters here.
3. Select the sensor value to compare via the sensor button above the graph. One sensor is compared at a time; you can switch to another sensor whenever you like.

Reading the graph

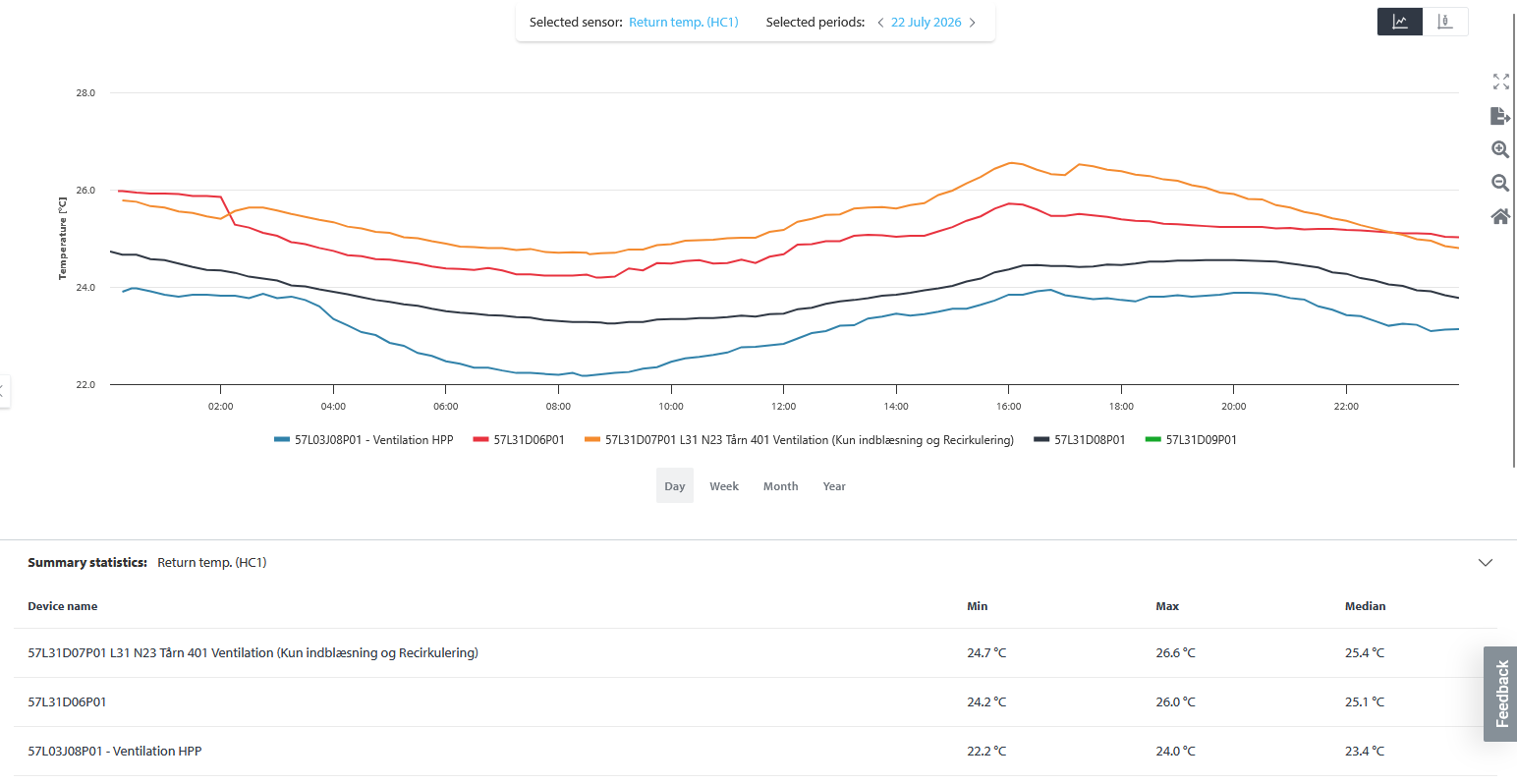

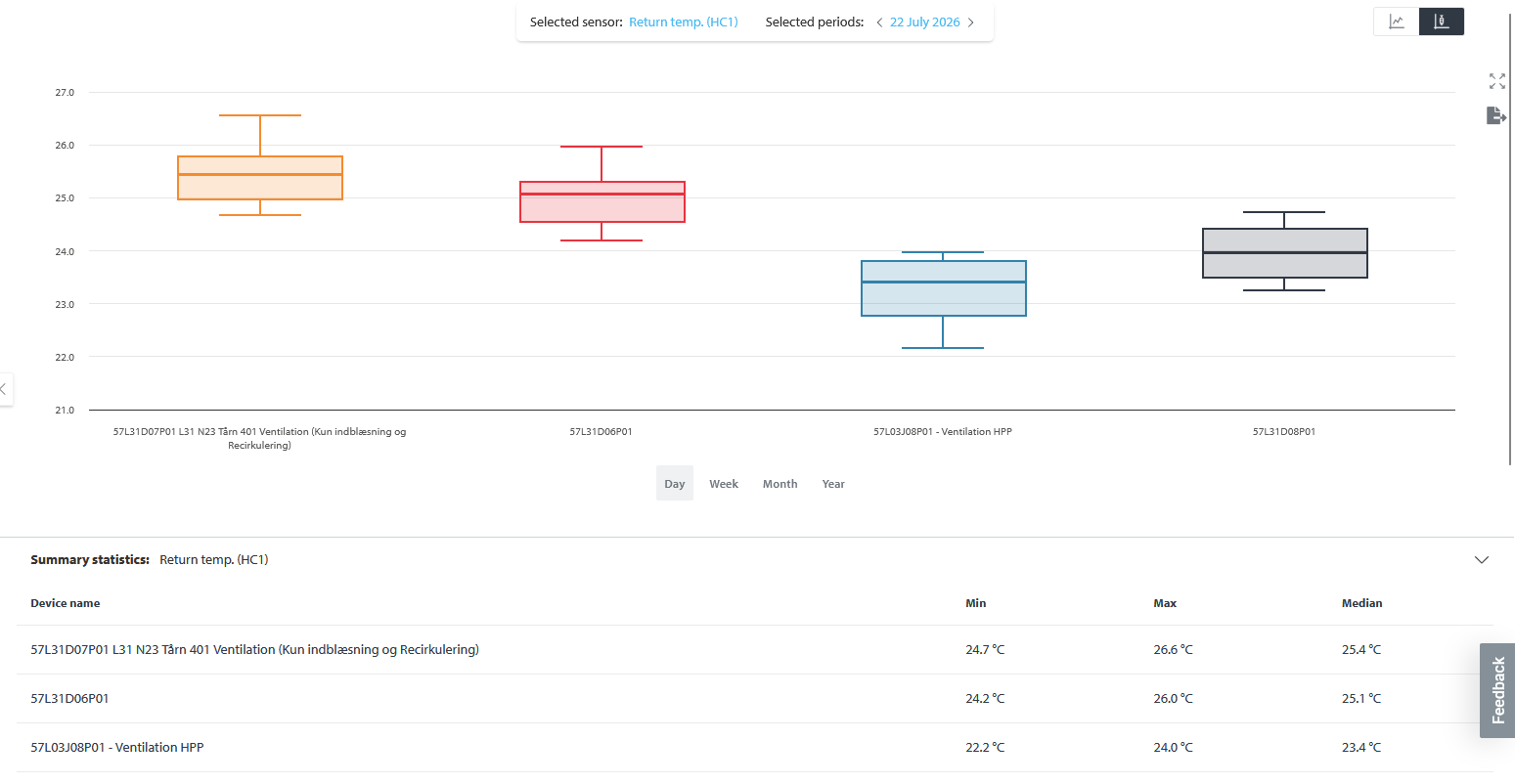

The readings are shown as a line graph with one color per device. Use the buttons under the graph to switch the resolution between Day, Week, Month and Year, and the arrows to step to the previous or next period. You can also switch to a box plot view to see the statistical distribution of the readings.

Summary statistics

Below the graph, the summary statistics table lists the Min, Max and Median readings for each device in the selected period.

The graph, including the statistics, can be exported as a PDF via the export button on the right side of the graph.
